Vacuum Pan Expanders

In-stock SKU: N/A

Experience enhanced efficiency and reliability with the Wilson Vacuum Pan Expanders. This indispensable tool is designed for effective tube sheet rolling in vacuum pans, making it ideal for a range of industrial applications. Here’s what sets it apart:

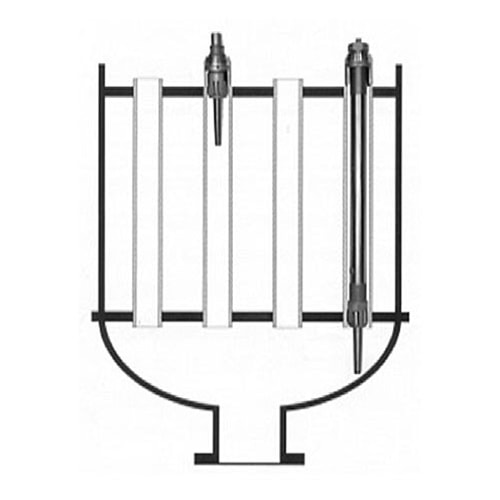

Wilson Vacuum Pan Expanders feature both a short expander for rolling the top sheet and a long-reach expander for rolling the bottom sheet from the top, eliminating the need to access the bottom tube sheet directly.
Offers reach adjustment of up to 12 inches, providing flexibility to accommodate various operational setups.
Ensures the mandrel remains securely in place without the need for pins and washers, simplifying the setup process.
Engineered to avoid sharp edges in the rolled area, ensuring a smooth finish and minimizing the risk of material damage.
Prevents contact with the bottom pan, maintaining consistent performance and enhancing tool longevity.

The Wilson Vacuum Pan Expander is suitable for use with tubes ranging from 3 to 4 inches in outer diameter and gauges from 8 to 22. Elevate your maintenance operations with Wilson Vacuum Pan Expanders and enjoy unparalleled precision and reliability!

Select an Option

Clear

QTY:

Same day shipping available

Need a custom order?

Add this product

to your list to request your quote.

COMMON APPLICATIONS FOR WILSON VACUUM PAN EXPANDERS

It is ideal for use in various industrial settings, including maintenance and manufacturing.
Perfect for rolling operations in vacuum pans, particularly for tube sheet preparation.
Effective in applications requiring access to hard-to-reach areas without direct access to the bottom tube sheet.

KEY FEATURES OF WILSON VACUUM PAN EXPANDERS

Short and long-reach expanders, including a short expander for rolling the top sheet and a long-reach expander for the bottom sheet, enhance versatility.
Reach adjustment capability of up to 12 inches for flexibility in various operational setups.
Wilson Vacuum Pan Expanders’s captive nut design that retains the mandrel securely in place, eliminating the need for pins and washers.
Double radius rolls are designed to avoid sharp edges in the rolled area, ensuring safety and quality.
Limited mandrel travel to prevent contact with the bottom pan during operation.
Heavy-duty pronged collar featuring a thrust ball bearing for durability and stability.
Retainer plate for vertical suspension, adding to the tool’s overall efficiency.

SPECIFICATIONS FOR WILSON VACUUM PAN EXPANDERS

Outer diameter compatibility: 3 to 4 inches
Gauge range: 8 to 22 Gauge
Reach adjustment: Up to 12 inches
Short expander for the top sheet and long-reach expander for the bottom sheet
Heavy-duty materials for enhanced durability

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Short Expanders

Tube Size OD BWG	Range (Min-Max)	Expander Top Sheet	Spare Rolls	Spare Mandrel
3″ x 14-16	2.750 – 3.000	14302-2000	31675- 1000	32275-9002
3.5″ x 14-16	3.250 – 3.500	14342-2000	31691- 1000	32277-9002
4″ x 13-18	3.750 – 4.000	14382-2000	31723- 1000	32277-9002

Long Reach Expanders

Tube Size OD BWG	Range (Min-Max)	Expander 30-42″ Reach	Expander 42-54″ Reach	Expander -66″ Reach	Spare Mandrel*	Spare Rolls	Drive Shank	Mandrel Travel
3″ x14-16	2.750 – 3.000	14302-2036	14302-2048	14302-2060	32275-90XX	31675- 1000	3/4″SQ	6.10″
3.5″ x 14-16	3.250 – 3.500	14342-2036	14342-2048	14342-2060	32277-90XX	31691- 1000	1 “SQ	6.10″
4″ x 13-18	3.750 – 4.000	14382-2036	14382-2048	14382-2060	32277-90XX	31723- 1000	1″ SQ	6.10″
