Home > Products > Tube Installation > Tube Expanders > Combination Beading Expander

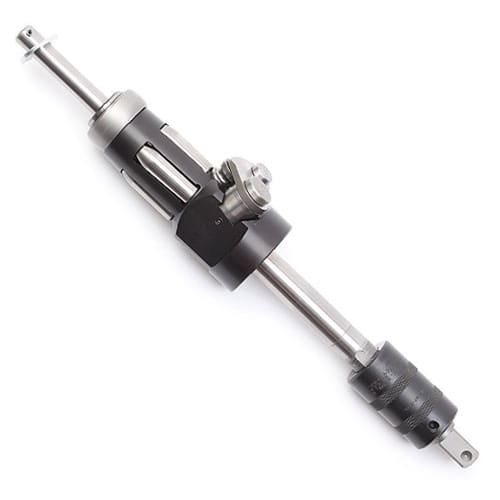

The Wilson Combination Beading Expander (CBE) is one of our smartest tools! Rather than expanding a tube, manually beading it, and then re-rolling it with a straight roll expander, the patented Combination Beading Expander from TC Wilson does all three jobs in one seamless process. The CBExpander, now available in 1-1/2″ for all gauges (10 ga-12 ga), allows the operator to cut the tube in the boiler, which delivers perfect results in 8 seconds.
The Wilson Combination Beading Expander doesn’t just save time, cut labor costs and reduce your equipment investment; it also produces a perfect bead every time.

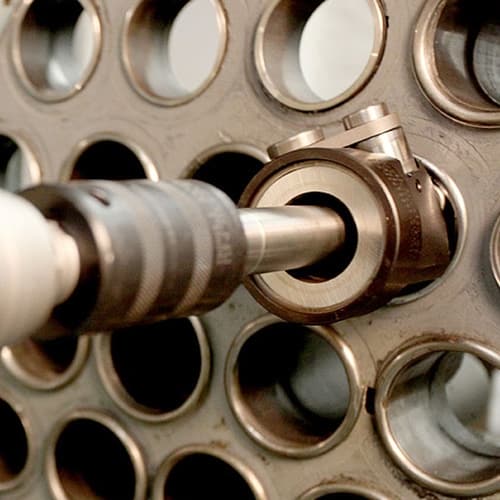

Designed primarily for fabrication and re-tubing of fire-tube boilers, the Combination Beading Expander rolls and beads many different sized tubes. Ensure at least 3/16″ projection from the tube sheet when using the CBE as this is critical for forming a bead.
Use this self-feeding, parallel-rolling tool to reduce your process time. Order yours today to boost your team’s efficiency.
FEATURES AND BENEFITS
WHERE TO USE THE CBE
The Combination Beading Expander rolls and beads tubes with:
The Wilson Combination Beading Expander for 2″ OD tubes is a 4-roll expander. For 2.5″ and 3″ tubes, it is a 5-roll expander.
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
* Assembly includes Standard Mandrel, Grease Gun (Part No. 53553) and Service Manual/Parts List (SM-140). Short Series Mandrels for wet back or tight turn around are available.
