Wilson Boiler Tube Expander

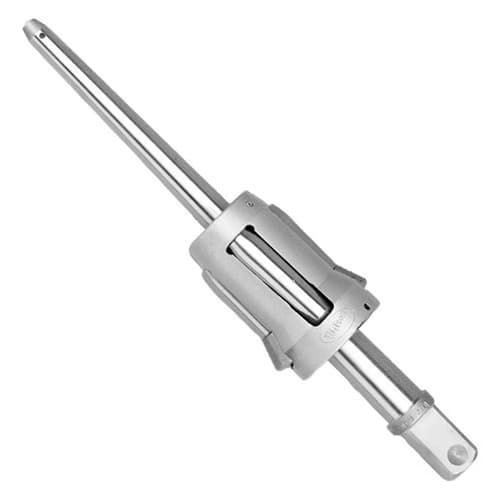

4-Roll Boiler Tube Expander, Self-Feeding, Flaring (Series 116)

In-stock SKU: N/A

The Wilson Series 116 Boiler Tube Expander is engineered for superior performance in HRT and firetube boilers. Designed with four expanding rolls and two flare rolls, these boiler tube expanders achieve an exceptionally fine surface with minimal indentation by the flare rolls.

Key features of Wilson Boiler Tube Expanders include:

  • Ability to simultaneously flare and roll the tube to ensure an exceptionally fine surface with minimal indentation.
  • Self-feeding design is easy to use and highly efficient.
  • Built for HRT and Firetube boilers and applications where final beading of tube ends is required.
  • Self-retained rolls make it well-suited for use with reverse taper mandrels for far-end tube expansion.

The Wilson 4-Roll Boiler Tube Expander is a reliable and efficient tool, offering excellent performance for professionals in the boiler maintenance and manufacturing industries.

Log in to See Your Price
Same day shipping available
Need a custom order?
Add this product
to your list to request your quote.

The Wilson Series 116 4-Roll Boiler Tube Expander is a reliable and efficient tool that is purpose-built for professionals in boiler maintenance and manufacturers.

HOW TO USE THE WILSON BOILER TUBE EXPANDER

  • Remove all rust and debris from inside and outside the tubes.
  • Loosen the set screw with the Hex key, adjust the collar, and position the expander in the tube. (Not relative to boiler expanders, only heat exchanger expanders.)
  • Ensure the rolls are 1/16″ inside the rear tube sheet. Do not roll outside the tube sheet. (Not related to boiler expanders.)
  • Apply Wilson Expander Lube (P/N 28115-0009) to the tube before rolling.
  • Use two expanders alternately, switching every 10-15 tubes to manage heat. (Not related to boiler expanders.)
  • Check rolls and mandrels after each tube and replace if necessary.
  • Clean and store expanders after use.

FEATURES

  • Achieves a smooth surface with minimal marks.
  • Ideal for boilers that require final tube end beading.
  • Designed for reliable performance with reverse taper mandrels.
  • Easy to use.
  • Self-feeding design.

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

TubeAssembly
with Mandrel
Part No.		SparesReverse Taper MandrelExpansion
Range*
Inches
ODWallStandard Mandrel
Inches(mm)GA(mm)Part No.SquareRoll Set Part No.Part No.Square
Inch(mm)Inch(mm)
1-1/2(38.1)11-14(3.0-2.1)36607300643/4(19.1)366531.215-1.389
2(50.8)10-16(3.4-1.7)366123056636654207683/4(19.1)1.680-1.959
2-1/2(63.5)10-18(3.4-1.2)366163056736655207712.192-2.453
3(76.2)9-18(3.8-1.2)36620305691(25.4)36656207741(25.4)2.654-2.954
