Torq-Air-Matic™ Model A Tube Roller

In-stock SKU: N/A

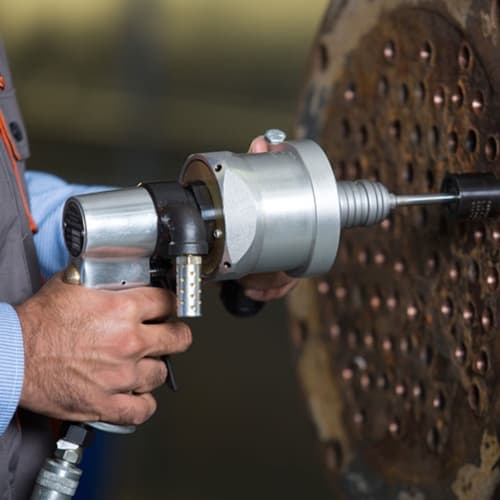

The Torq-Air-Matic A is a pneumatic, torque-controlled drive motor for rolling ferrous and non-ferrous tubes in heat exchangers and other pressure vessels.

Pneumatic, Torque Controlled Rolling Motors for 1/2″ to 1-1/4″ OD

Select an Option

Clear

QTY:

Same day shipping available

Need a custom order?

Add this product

to your list to request your quote.

Rolling ferrous and non-ferrous tubes in heat exchangers and other pressure vessels
1/2 to 1 1/4-Inch (12.7 to 38.1mm) Outer Diameter tubes

Weight: – Drive: 9 lbs. (4 Kg) Kit: 21 lbs. (9.5 Kg)
Air Consumption: – 32 SCFM Maximum
Length: – 9.5 Inches (241 mm)
Side to Center: – 2 Inches (50.8 mm)
Drive: – 1/2-Inch Ball Drive Spindle

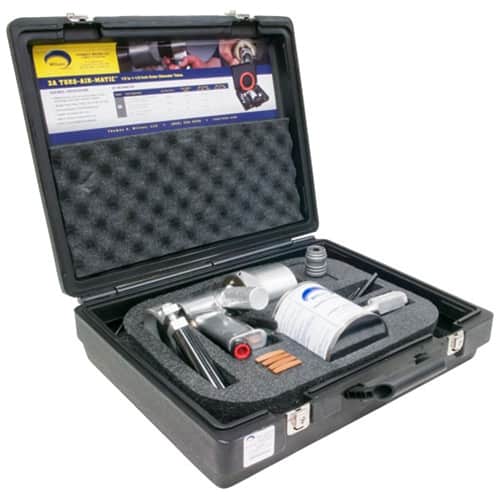

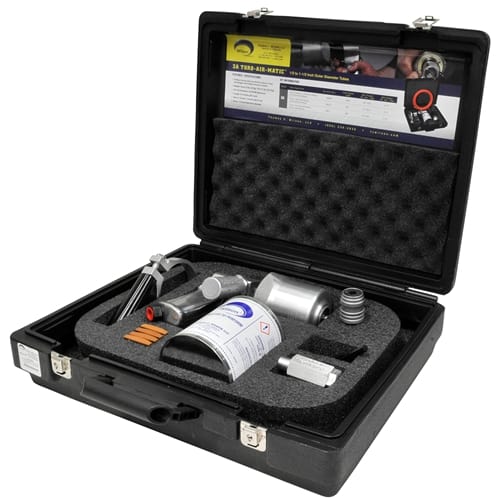

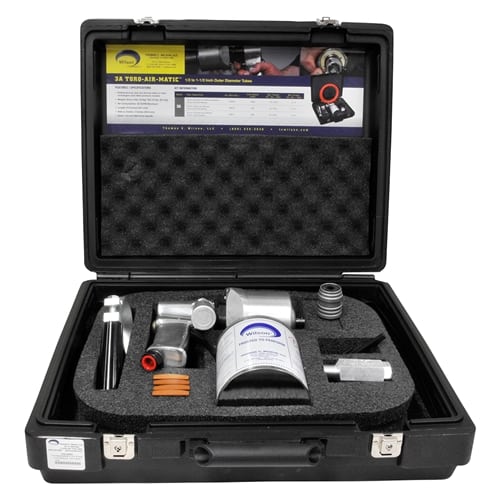

Torq-Air-Matic Drive
Set of Rotor Blades
Operating Hose
Mandrel Connector
Air Line Filter
1-Quart Expander Lube
Hex Keys
Carrying Case
Service Manual SM-97F

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube Capacities	Torq-Air-Matic	Free Speed	Maximum Torque		Minimum Torque
Tube Capacities	Part No.	rpm	Ft. lbs.	Nm	Ft. lbs.	Nm
1/2-Inch to 7/8-Inch x 18 Gauge non-ferrous	40509	1000	10	13.6	3	4
1/2-Inch to 3/4-Inch ferrous	40509	1000	10	13.6	3	4
1/2-Inch to 1-Inch non-ferrous	40510	750	12	16.3	3	4
1/2-Inch to 3/4-Inch ferrous	40510	750	12	16.3	3	4
1/2-Inch to 1 1/4-Inch non-ferrous	40511	450	18	24.4	3	4
1/2-Inch to 1-Inch ferrous	40511	450	18	24.4	3	4
