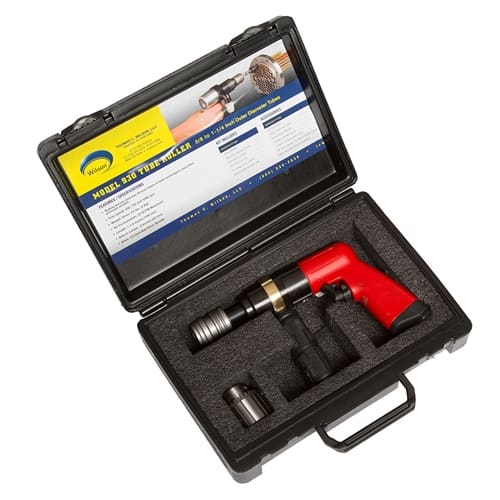

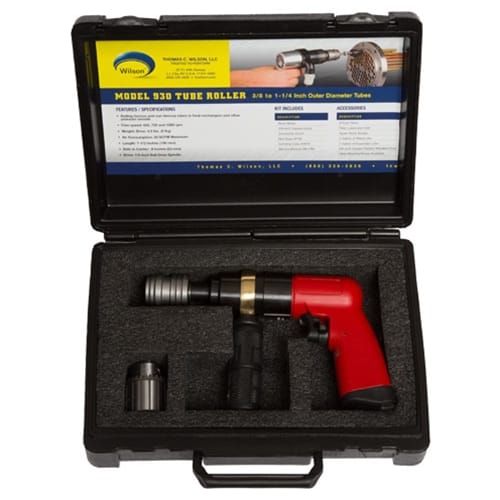

Air-Drive 930 Pneumatic Tube Roller

In-stock SKU: N/A

The Air-Drive 930 is a non-torque pneumatic drive motor for rolling ferrous and non-ferrous tubes in heat exchangers and other pressure vessels.

Pneumatic, Non-Torque Tube Rolling Motors for 1/2″ to 1-1/4″ OD

Select an Option

QTY:

Same day shipping available

Need a custom order?

to your list to request your quote.

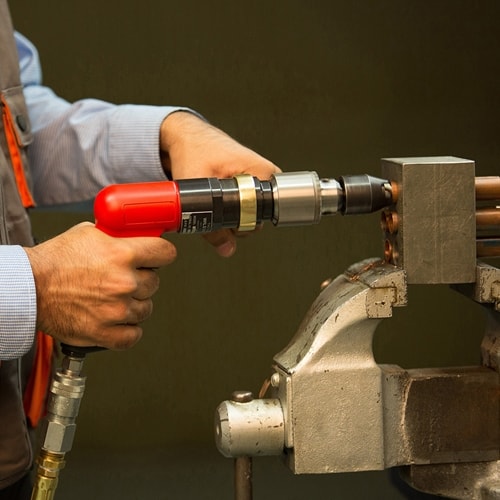

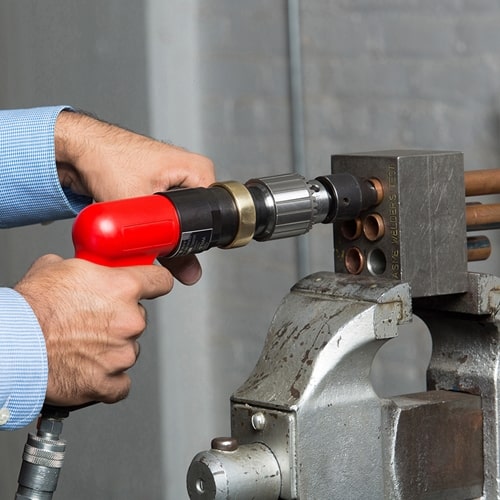

Rolling ferrous and non-ferrous tubes in heat exchangers and other pressure vessels
1 to 1-1/2 -Inch (2.54 to 38.1mm) OD Tubes

Manual

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube Capacities	Drive Motor	Free Speed	Maximum Torque		Minimum Torque
Tube Capacities	Part No.	RPM	Ft. Lbs.	Nm	Ft. Lbs.	Nm
1/2-Inch to 7/8-Inch non-ferrous	930- 1000	1000	10	13.6	3	4
1/2-Inch to 3/4-Inch ferrous	930- 1000	1000	10	13.6	3	4
1/2-Inch to 1-Inch non-ferrous	930- 7500	750	12	16.3	3	4
1/2-Inch to 3/4-Inch ferrous	930- 7500	750	12	16.3	3	4
1/2-Inch to 114-Inch non-ferrous	930-4500	450	18	24.4	3	4
1/2-Inch to 1-Inch ferrous	930-4500	450	18	24.4	3	4
