Air-Drive 909 Pneumatic Right-Angle Tube Roller

In-stock SKU: N/A

The Air-Drive 909 is a non-torque, right-angle pneumatic drive motor for rolling ferrous and nonferrous tubes in water and fire tube boilers and other pressure vessels. Ideal for hard-to-reach and confined spaces.

Pneumatic, Non-Torque, Right Angle Tube Rollers for 1″ to 4″ OD

Select an Option

Clear

QTY:

Same day shipping available

Need a custom order?

Add this product

to your list to request your quote.

Lightweight
Reversible stall type
Heavy-duty gear system
Right-angle design gives users built-in leverage
Powerful motor
3/4-Inch square spindle

Rolling ferrous and nonferrous tubes in water and fire tube boilers and other pressure vessels.
Ideal for hard-to-reach and confined spaces.

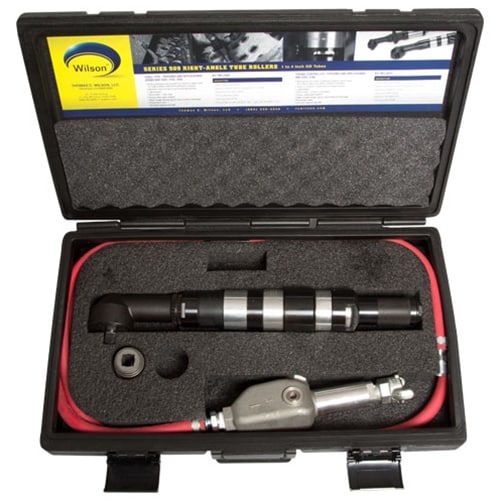

Right-Angle Tube Roller
Quick Connector (3/4-Inch square) 21137-0756
Operating Hose 8973-0008
Inline Lubricator 53360
Carrying Case 44099
Service Manual SM-156 (909-1600, 1700), SM-253 (909-1900)

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube OD		Free Speed	Tube Roller	Max. Torque @90psiG Air Press.		Min Torque @90psiG Air Press.		Lever and Controls	Weight	Air Consumption CFM	Service Manual
Inches	(mm)	rpm	Part No.	Ft. Lbs.	NM	Ft. Lbs.	NM	Lever and Controls	Weight	Air Consumption CFM	Service Manual
1 to 2-1/2	(25.4-63.5)	160	909- 1600	165	224	10	14	Lever Throttle Stall Type	13.3 lbs. (6.0 Kg)	72	SM- 156
1 to 2-1/2	(25.4-63.5)	95	909- 1700	240	326	10	14	Lever Throttle Stall Type	13.3 lbs. (6.0 Kg)	72	SM- 156
1-1/2 to 4	(38.1-101.6)	90	909- 1900	305	414	150	214	Roll Throttle Stall Type	18.5 lbs. (8.8 Kg)	90	SM- 253
