952 Auto-Reverse Tube Roller

In-stock SKU: N/A

The 952 is a muffled, reversible, torque-controlled pneumatic drive motor for rolling ferrous and non-ferrous tubes in heat exchangers and other pressure vessels.

Pneumatic, Torque Controlled, Rolling Motors for 1/4″ to 3/8″ OD

Select an Option

Clear

QTY:

Same day shipping available

Need a custom order?

Add this product

to your list to request your quote.

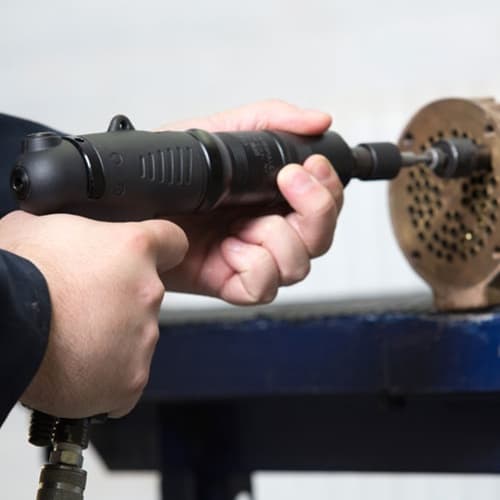

Rolling ferrous and non-ferrous tubes in heat exchangers and other pressure vessels
1/4- to 3/8-Inch (6.4 to 9.5mm) Outer Diameter Tubes

Weight: – 2.5 lbs. (1.2 Kg)
Air Consumption: – 19 CFM
Length: – 8 1/2 Inches (215 mm)
Side to Center: – 1 1/2 Inches (39 mm)
Drive: – 3/8-Inch Square Spindle

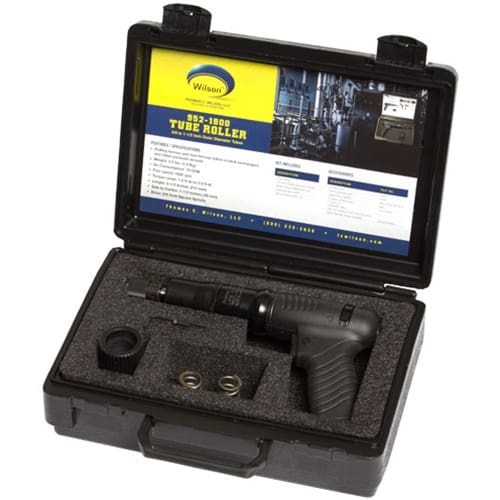

Drive Motor
1/4-Inch Square Quick Connector
Quick Torque Adjustment Tool
Carrying Case 42878
Service Manual SM-155

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube Capacities	Drive Motor	Free Speed	Maximum Torque		Minimum Torque
Tube Capacities	Part No.	rpm	Ft. lbs.	Nm	Ft. lbs.	Nm
Up to 3/8-Inch non-ferrous	952- 1800	1800	3.6	4.8	0.5	0.6
Up to 3/8-Inch non-ferrous	952- 2200	2200	3.2	4.3	0.5	0.6
Up to 3/8-Inch non-ferrous	952- 2500	2500	2.6	3.5	0.5	0.6
