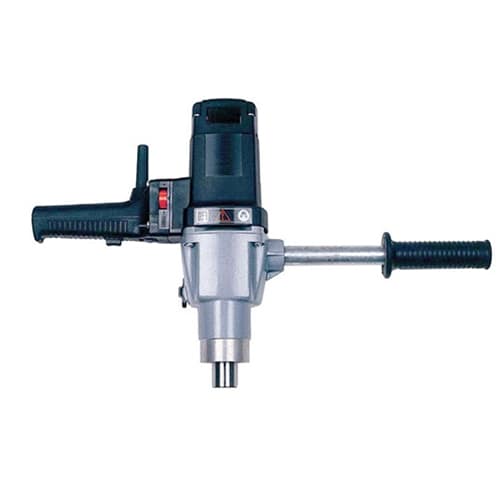

2 To 3 Inch Electric Tube Roller

In-stock SKU: N/A

Wilson Electric Torque-Controlled Tube Rollers are non-torque, reversible electric drives for rolling steel, copper, and other non-ferrous tubes in boilers, heat exchangers, and other pressure vessels. Some models feature a dead handle for added leverage making it easier to maneuver.

Additional information on the 2 to 3 inch Electric Tube Roller for Boilers:

Adjustable 2 to 3 inch Electric Tube Roller torque controller automatically reverses the motor at the selected torque.
One control box suitable for a 110- or 220-volt single-phase power input.
On/Off reversing motors.
Dead handle offers added leverage and maneuverability.
The series consists of a range of electric motors.

These 2 to 3 inch Electric Tube Roller professional tools for boilers usually have you ready to roll tubes in less than 3 minutes. TC Wilson can repair these units, if they need rebuilding.

Select an Option

Clear

QTY:

Same day shipping available

Need a custom order?

Add this product

to your list to request your quote.

WHERE TO USE 2 TO 3 INCH ELECTRIC TUBE ROLLER:

Rolling ferrous and nonferrous tubes in boilers.

FEATURES OF 2 TO 3 INCH ELECTRIC TUBE ROLLER:

Wilson Electric Torque-Controlled Tube Rollers are durable, reliable, and easy to use. In most cases, you are ready to roll tubes in less than 3 minutes.
The torque controller is adjustable for expanding torque and will automatically reverse the motor when selected torque is reached.
One control box can be used in 110/220 volt single phase power input. Motors are on/off reversing and equipped with dead handle that gives operator added leverage and maneuverability.
The series consists of a range of electric motors. See chart below for selection.

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube OD		Voltage and Frequency	Motor	Free Speed	Amps/Wattage	Control Box	Control Box
Inches	(mm)	Voltage and Frequency	Part No.	rpm	Amps/Wattage	Part No.	Amps
2 to 3	(50.8-76.2)	110 Volts 60 Hz	22490- 0000	100	900 Watts	76500- 0000	20
2 to 3	(50.8-76.2)	220 Volts 50 Hz	22490- 0220	100	900 Watts	76190- 5220	20
