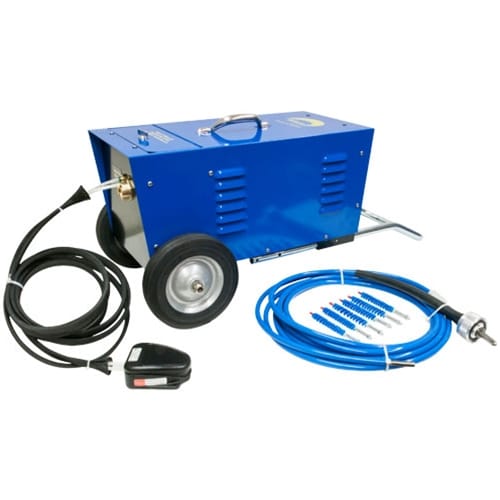

Wils-Away™ 4000 Air-Driven Tube Cleaner

In-stock SKU: waw-4000-1

The Wils-Away™ 4000 Pneumatic Tube Cleaning System can go anywhere electric motors are not allowed because it is air-driven. Ideal for removing medium to hard deposits, it also provides forward/reverse drive via remote foot pedal. With the Air-Driven units you can control the speed of the shaft and casing for effective cleaning action.

Log in to See Your Price
Same day shipping available
Need a custom order?
Add this product
to your list to request your quote.
  • Cleaning Tubes in Heat Exchangers, Condensers, Chillers, Absorbers, Water Heaters, Coolers and Other Small Diameter Pressure Vessels
  • 3/8 to 1 1/2-Inch (9.5 to 38.1mm) Outer Diameter Tubes
  • Removing Medium to Hard Deposits
  • Ideal Cleaning System when Electric Power is Not Available
  • Air Motor Enables Operator to Control Speed of Cleaning Head and Shaft & Casing Rotation
  • Dolly-Mounted Drive Unit – 58 lbs.; 12″H x 23″W x 11 1/2″D – (26Kg; 305 x 584 x 292mm)
  • Speed – 500 to 3,000 rpm
  • Air Consumption – 40 CFM @ 90 psi (WAW-4000)
  • Power – 4 HP (WAW-4000)
  • Accessories Air Hose 3/8-Inch Minimum – 1/2-Inch – 50 Feet
  • Part No. 9600-0121
  • Dolly-Mounted Unit with Tool Compartment
  • Flexible Shaft & Casing
  • Foot Pedal
  • 6 Nylon Spiral Brushes
  • -or-
  • Expanding Bronze Brush and Spare Refill Set
  • Service Manual SM-226 (WAW-4000)

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube ID RangeComplete
Kit*		Drive
Unit		Flexible
Shaft
& Casing		6 Nylon1
Spiral Brushes		Expanding2
Bronze Brush
Inches(mm)
.281 – .311(7.1 – 7.9)WAW-4000
(4 HP Dolly-Mounted Unit)		98009720-0015
(8×32 Female thread)		61746-
4025		–
.312 – .342(7.9 – 8.7)61746-
4028		–
.343 – .374(8.7 – 9.5)61746-
4031		–
.375 – .405(9.5 – 10.3)61746-
4034		–
.406 – .436(10.3 – 11.1)62501-
4037		–
.437 – .499(11.1 – 12.7)9722-0025
(1/4×28 Female Thread)		62501-
4043		–
.500 – .561(12.7 – 14.2)62501-
4050		–
.562 – .624(14.2 – 15.8)62501-
4056		9900-
3003
.625 – .686(15.9 – 17.4)9724-0025
(1/4×28 Female Thread)		62501-
4062		9900-3006
.687 – .749(17.4 – 19.0)62501-
4068		2456-30023
.750 – .811(19.0 – 20.6)62501-
4075		2456-30033
.812 – .874(20.6 – 22.2)62501-
4081		2456-30043
.875 – .936(22.2 – 23.8)62501-
4087		2456-30063
.937 – .999(23.8 – 25.4)62501-
4093		2463-30043
1.000 – 1.061(25.4 – 26.9)62501-
4100		2463-30053
1.062 – 1.124(26.9 – 28.5)9728-0025
(9/16×12 Male Thread)		2463-30074
1.125 – 1.186(28.5 – 30.1)2463-30084
1.187 – 1.249(30.1 – 31.4)2470-30024
