Wils-Away™ 1500 Electric Tube Cleaner

In-stock SKU: waw-1500-1-1/2

The Wils-Away™ 1500 Electric Tube Cleaner is designed for professionals, by industry experts. Perfect for manufacturers or maintenance crews, the kit cleans straight tubes in fire tube boilers, air heaters, and other pressure vessels with a 1.5″-4.5″ OD.

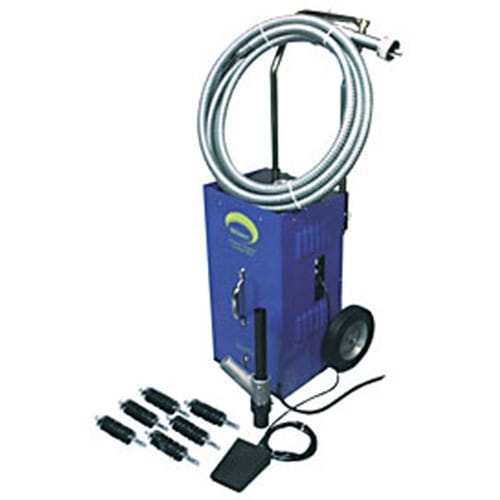

Each kit includes an electric drive unit and all accessories and tools required for thorough tube cleaning:

  • 1 Drive Unit 1hp 110v/50 60 hz
  • Foot Pedal-Single Direction
  • Spare Safety Shaft Coupling
  • 1 25ft shaft and casing Rubber coated (Dry)
  • 6 Spiral Brushes (Steel)
  • 1 Vacuum Connector & Nozzle
  • -or-
  • Expanding Steel Brush and Spare Refill Set

The expanding heavy-duty brush shaft and casing’s high-speed rotation (1725 rpm), along with our excellent selection of vacuums, make the WAW-1500 (1 HP) or WAW-2500 (2 HP) ideal for safely and efficiently cleaning soot and scale. Use either the WAW-1500 (1HP) or the WAW-2500 (2HP) for tube sizes above 3″.

Log in to See Your Price
Same day shipping available
Need a custom order?to your list to request your quote.

Perfect for professionals who need to remove tougher deposits like scale and soot, the WAW-1500 stands up to your daily grind.

HOW TO USE THE WAW-1500

  • Attach the correct shaft and casing based on application.
  • Ready to clean dry with a rubber or Teflon shaft
  • Ready to flush water with nylon shaft.
  • Depress the foot pedal to activate the electric motor.
  • The motor drives the flexible shaft, rotating the cleaning head.

Clean straight tubes in fire tube boilers, air heaters, and other pressure vessels. Easily remove soot and scale in 1.5″- 4.5″ (38.1 to 114.3 mm) OD tubes.

SPECIFICATIONS FOR THE WAW 1500 / 2500:

  • 1 HP Drive Unit – 62 lbs. (28kg)
  • Dimensions: – 12″ H x 23″ W x 11 1/2″ D (305 x 584 x 292mm)
  • Speed – 1,725 rpm
  • Power – 1 HP (WAW-1500-1600)
  • Current: – 115 Volt 50/60Hz (WAW-1500)

SMART, PURPOSE-BUILT TOOL

  • Electric drive unit and all accessories and tools required for thorough tube cleaning.
  • Spiral steel brush removes soot in one pass.
  • Expanding brush cuts through scale.
  • Optional vacuum unit collects soot, keeping work area clean.
  • Optional twin foot pedal enables forward/reverse drive.

Each WAW1500 / WAW-2500 kit includes:

  • (1) Drive Unit 1hp 110v/50 60 hz
  • (1) Foot Pedal-Single Direction
  • (1) Spare Safety Shaft Coupling
  • (1) 25ft shaft and casing Rubber coated (Dry)
  • (6) Spiral Brushes (Steel)
  • (1) Vacuum Connector & Nozzle
  • -or-
  • Expanding Bronze Brush and Spare Refill Set

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube ID RangeComplete
Kit*
Drive
Unit
Shaft
& Casing
6 Steel
Spiral Brushes
Shaft AdapterExpanding Steel Brush
Inches(mm)
1.250 – 1.499(31.8 – 38.1)WAW-150096109730-9025
(9/16 x 12 Male Thread)
62540-
0125
9893
(1/4 FEM NPT)
2477-
0001
1.500 – 1.749(38.1 – 44.4)62540-
0150
2477-
0006
1.750 – 1.999(44.5 – 50.8)62540-
0175
2492-
0006
2.000 – 2.249(50.8 – 57.1)62540-
0200
2501-0007
2.250 – 2.499(57.2 – 63.5)62540-
0225
3441-
0005
2.500 – 2.749(63.5 – 69.8)62540-
0250
3441-
0010
2.750 – 2.999(69.9 – 76.2)9732-0025
(3/4 x 10 Male Thread)
62540-
0275
9894 (1/4 FEM NPT)3456-
0003
3.000 – 3.249(76.2 – 82.5)62540-
0300
3456-0006
3.250 – 3.449(82.6 – 88.9)WAW-2500963062540-
0325
3470-0004
3.500 – 3.749(88.9 – 95.2)62540-
0350
3470-
0007
3.750 – 3.999(95.3 – 101.6)62540-
0375
3470-
0009
4.000 – 4.250(101.6 – 108.0)62540-
0400
4060-0006
