Air-Driven, Water-Flushing, Drill Type Tube Cleaner (Pgx-2 Series)

In-stock SKU: pgx 1-1/16 kit

Our PGX-2 Series Tube Cleaning Systems are designed to clean tubes in heat exchangers, condensers, refinery fixtures, chillers, absorbers, water geaters, coolers, evaporators, and other small diameter pressure vessels. It removes heavy deposits as it drills out deposits within clogged tubes. To increase cleaning depth with this system, simply add one of our 5-foot hollow Extension Shafts. Various types of drill bits & brushes are available for different scales. Changing the shaft diameter allows for different sized tubes to be cleaned, using the same motor.

Log in to See Your Price
Same day shipping available
Need a custom order?to your list to request your quote.
  • Cleaning Tubes in Heat Exchangers, Condensers, Refinery Fixtures, Chillers, Absorbers, Water Heaters, Coolers, Evaporators, and Other Small Diameter Pressure Vessels
  • 1/4 to 1 1/4-Inch (6.4 to 31.8mm) Outer Diameter Tubes
  • Removing Heavy Deposits and Cleaning Out Clogged Tubes
  • Speed – 8,000 to 10,000 rpm
  • Air – 80 to 125 psi
  • Motor – Two models cover a wide range of tube sizes

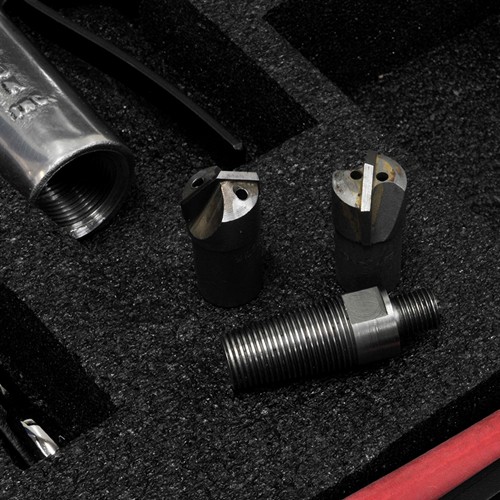

  • Carbide tipped Type M Cutter Bits literally drill through the heaviest deposits… even totally clogged tubes!

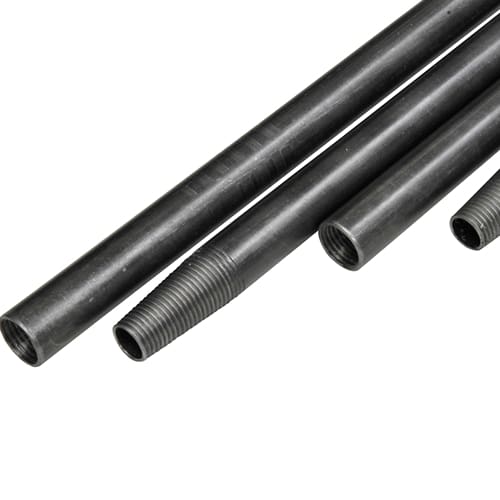

  • Cleaning depth is easily increased by adding 5-foot hollow extension shafts.
  • Scavenging hose sends water down the extension shafts, cooling the cutter bit and providing flushing action.
  • Water flushing clears away debris. When water is clear, the tube is clean!
  • Direct drive increases power and minimizes moving parts.

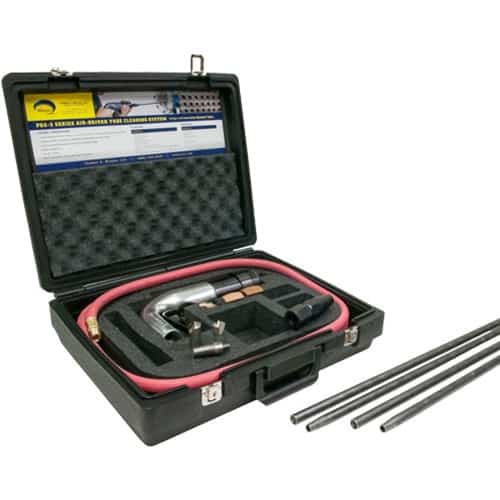

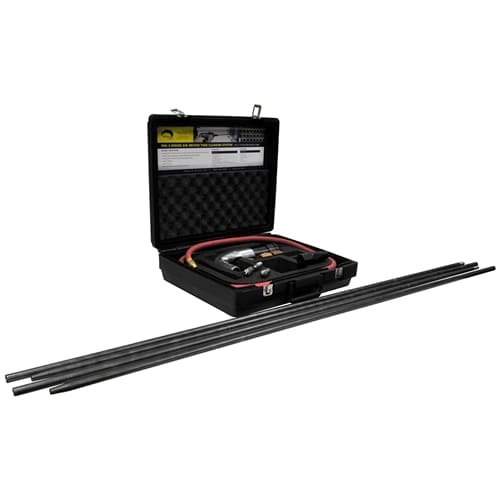

  • PGX-2 Air Motor
  • 4 5-Foot Drill Shafts
  • 2 M Cutter Bits
  • 2 M/SPE-DUR Cutter Bit Adapters
  • Spare Rotor Blades
  • 3/8-Inch Scavenging Hose (15 Feet/4.5M)
  • Set of Spare Rotor Blades, Rotor Wrench, and Adjustable Wrench
  • Tool Box

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube Inner
Diameter Range
Complete
Kit*
Air
Motor
5-Foot
Ext. Shafts (4)
M Cutter
Bits (2)**
M/SPE-DUR
Bit Adapters (2)
Scavenging
Hose
Inches(mm)
.187 – .205(4.7 – 5.2)PG700561242-00XX**8042-0015
(3/8 Inch)
.206 – .304(5.2 – 7.7)62327-00XX**
.305 – .318(7.7 – 8.1)60605-00XX**
.319 – .374(8.1 – 9.5)
.375 – .437(9.5 – 11.1)6207-
0005
77697189
.438 – .499(11.1 – 12.7)7770
.500 – .562(12.7 – 14.3)PGX-292886208-
0005
77717192
.563 – .624(14.3 – 15.8)6209-
0005
77867194
.625 – .686(15.9 – 17.4)7772
.687 – .749(17.4 – 19.06210-
0005
77737196
.750 – .811(19.1 – 20.6)7774
.812 – .874(20.6 – 22.2)7775
.875 – .937(22.2 – 23.8)6211-
0005
77767199
.938 – .968(23.8 – 24.6)7790
.969 – 1.062(24.6 – 27.0)7777

* Complete kit consists of Air Motor, 5-Foot Ext. Shafts, M Cutter Bits, and M/SPE-DUR Bit Adapters.
** For Inner Diameter Range .187 – .374 Inches (4.7-9.5mm) a Bit and Shaft Assembly is provided. Insert “24”, “36” or “48” as the last two digits of the Part No. to designate the Shaft length that is required.
