1.5hp Pneumatic Wils-Away Kit

In-stock SKU: waw-3000-1

The Wils-Away™ 3000 Pneumatic Tube Cleaning System can go anywhere electric motors are not allowed because it is air-driven. Ideal for removing medium to hard deposits, it also provides forward/reverse drive via remote foot pedal. With the Air-Driven units you can control the speed of the shaft and casing for effective cleaning action.

Log in to See Your Price
Same day shipping available
Need a custom order?to your list to request your quote.
  • Cleaning Tubes in Heat Exchangers, Condensers, Chillers, Absorbers, Water Heaters, Coolers and Other Small Diameter Pressure Vessels
  • 3/8 to 1 1/2-Inch (9.5 to 38.1mm) Outer Diameter Tubes
  • Removing Medium to Hard Deposits
  • Ideal Cleaning System when Electric Power is Not Available
  • Air Motor Enables Operator to Control Speed of Cleaning Head and Shaft & Casing Rotation
  • Compact Drive Unit – 32 lbs.; 10″H x 18″W x 8 1/2″D – (14Kg; 254 x 457 x 216mm)
  • Speed – 500 to 3,000 rpm
  • Air Consumption 15 CFM @ 90 psi (WAW-3000)
  • Power – 1 1/2 HP (WAW-3000)
  • Accessories Air Hose 3/8-Inch Minimum – 1/2-Inch – 50 Feet
  • Part No. 9600-0121

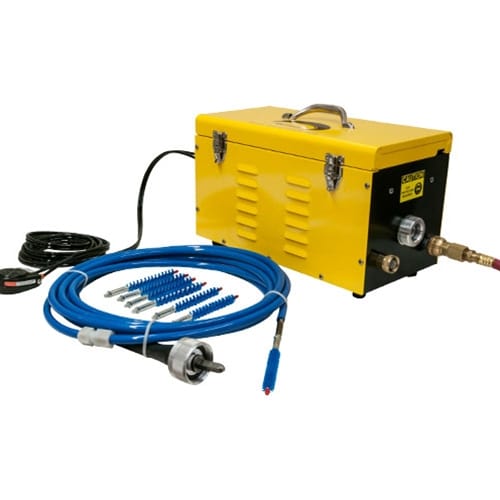

  • Compact Drive Unit with Tool Compartment
  • Flexible Shaft & Casing

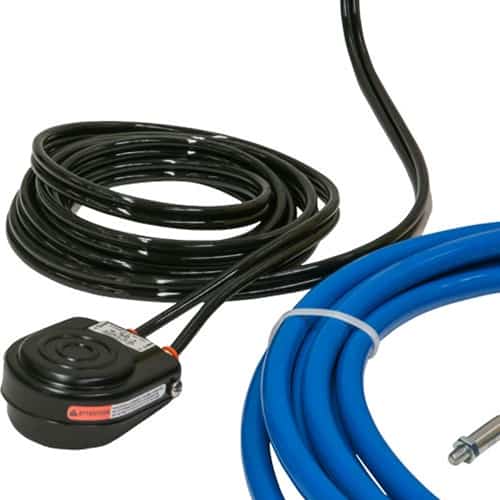

  • Foot Pedal
  • 6 Nylon Spiral Brushes
  • -or-
  • Expanding Bronze Brush and Spare Refill Set
  • Service Manual SM-243 (WAW-3000)

Manual

Download Manual

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Tube ID RangeComplete
Kit*
Drive
Unit
Flexible
Shaft
& Casing
6 Nylon1
Spiral Brushes
Expanding2
Bronze Brush
Inches(mm)
.281 – .311(7.1 – 7.9)WAW-3000
(1 1/2 HP Compact Unit)
95029720-0015
(8×32 Female thread)
61746-
4025
.312 – .342(7.9 – 8.7)61746-
4028
.343 – .374(8.7 – 9.5)61746-
4031
.375 – .405(9.5 – 10.3)61746-
4034
.406 – .436(10.3 – 11.1)62501-
4037
.437 – .499(11.1 – 12.7)9722-0025
(1/4×28 Female Thread)
62501-
4043
.500 – .561(12.7 – 14.2)62501-
4050
.562 – .624(14.2 – 15.8)62501-
4056
9900-
3003
.625 – .686(15.9 – 17.4)9724-0025
(1/4×28 Female Thread)
62501-
4062
9900-3006
.687 – .749(17.4 – 19.0)62501-
4068
2456-30023
.750 – .811(19.0 – 20.6)62501-
4075
2456-30033
.812 – .874(20.6 – 22.2)62501-
4081
2456-30043
.875 – .936(22.2 – 23.8)62501-
4087
2456-30063
.937 – .999(23.8 – 25.4)62501-
4093
2463-30043
1.000 – 1.061(25.4 – 26.9)62501-
4100
2463-30053
1.062 – 1.124(26.9 – 28.5)9728-0025
(9/16×12 Male Thread)
2463-30074
1.125 – 1.186(28.5 – 30.1)2463-30084
1.187 – 1.249(30.1 – 31.4)2470-30024

* Complete kit consists of drive unit, flexible shaft and casing, and 6 nylon spiral brushes or expanding bronze brush.
1 For steel spiral brushes, change the last four digits of the Part No. to “0XXX”, for stainless steel “2XXX”, for brass “3XXX”.
2 For expanding brush with nylon bristles, change the last four digits to “4XXX”, for stainless steel “5XXX”, for steel “0XXX”.
3 These expanding brushes require an adapter (Part No. 9589).
4 These expanding brushes require an adapter (Part No. 9798).
