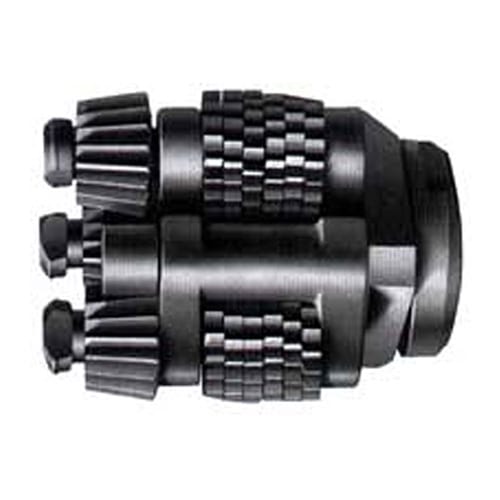

Cutter Head, Model CHJ

In-stock SKU: N/A

Model CHJ Cutter Heads are made for cleaning straight and curved tubes in boilers and large diameter pressure vessels. They clean 1 3/4 to 23-inch Outer Diameter straight tubes and 2-1/2 to 7-inch Outer Diameter curved tubes. These Cutter Heads are designed to remove hard scale and encrustations.

Log in to See Your Price
Same day shipping available
Need a custom order?
Add this product
to your list to request your quote.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Straight Tube ID RangeModel CHJ Cutter Head AssemblyCone CutterCutter WheelsDrive threadCleaning Range (Inch)
Min. – Max.		Weight
Inches(mm)Part No.(#)Part No.(#)lbs.(Kg)
1.375 – 1.749(34.9 – 44.4)4376-
4384		30(2)16(4)7/16×14(F)1 5/16 – 1 3/45/8(.3)
4376-
4385		9/16×12(F)
1.750 – 1.999(44.5 – 50.8)4261-
3997		68(2)24(4)7/16×14(F)1 9/16 – 2 1/47/8(.4)
4261-
3996		9/16×12(F)
2.000 – 2.124(50.8 – 54.0)4195-
3954		63A(2)37(4)9/16×12(F)1 13/16 – 2 9/161 9/16(.7)
4195-
4382		5/8×11 (F)
4195-
2706		3/4×10 (F)
2.125 – 2.374(54.0 – 60.3)4344-
3954		62A(2)44(4)9/16×12(F)2 – 2 7/81 11/16(.8)
4344-
4382		5/8×11 (F)
4344-
2706		3/4×10 (F)
2.375 – 2.624(60.3 – 66.7)3203-
4032		63A(3)83(18)5/8×11 (F)2 1/8 – 3 3/42 1/16(.9)
3203-
6518		3/4×10 (F)
3203-
4024		7/8×9 (F)
2.625 – 3.124(66.7 – 79.4)3209-
6518		62A(3)82(18)3/4×10 (F)2 1/2 – 4 1/42 3/4(1.2)
3209-
4024		7/8×9 (F)
3209-40231×14 (F)
3.125 – 3.499(79.4 – 88.9)3215-270561(3)81(18)3/4×10 (F)2 15 /16 – 4 13/163 1/2(1.6)
3215-
6919		7/8×9 (F)
3215-40221×14 (F)
3.500 – 4.249(88.9 – 108.0)3219-
6919		50(3)80(18)7/8×9 (F)3 1/16 – 53 3/4(1.7)
3219-
4022		1×14 (F)
3219-
4021		1 1/8×12 (F)
4.250 – 5.249(108.0 – 133.3)3226-
3511		57(3)65(12)7/8×9 (F)4 – 68 5/16(3.8)
3226-35121×14 (F)
3226-
3513		1 1/8×12 (F)
5.250 – 6.999(133.4 – 177.8)2174-
3514		1×14 (F)5 1/8 – 6 15/169 1/2(4.3)
2174-
2709		1 1/8×12 (F)
2174-
3585		1 3/8×12 (F)
7.000 – 8.999

(177.8 – 228.6)

3865-450932(4)73(8)1 1/8×12 (F)6 1/8 – 9 1/413 5/16(6.0)
3865-44371 3/8×12 (F)
9.000 – 11.99(228.6 – 304.8)7726-45091 1/8×12 (F)7 – 10 13/1614(6.4)
7726-44371 3/8×12 (F)
12.00 – 15.99(304.8 – 406.4)4744-450932(6)73(12)1 1/8×12 (F)10 11/16 – 1624 1/4(11.0)
4744-44371 3/8×12 (F)
16.00 – 17.99(406.4 – 457.2)5171-443732(6)73(12)1 3/8×12 (F)13 1/4 – 18 1/227 1/2(12.5)
18.00 – 22.00(457.2 – 558.8)7402-443732(4)73(8)1 3/8×12 (F)16 1/4 – 21 1/223 1/2(10.7)
Curved Tube ID RangeModel CHJ Curved Cutter Head AssemblyCone CutterCutter WheelDrive ThreadCleaning Range (In.)
Min. – Max,		Weight
Inches(mm)Part No.(#)Part No.(#)lbs.(Kg)
2.000 – 2.374(50.8 – 60.3)4195-
4653		63A(2)37(4)9/16×12 (F)1 13/16 – 2 9/161 3/4(.8)
4195-
4606		5/8×11 (F)
2.375 – 2.874(60.3 – 73.0)3203-
4650		63A(3)83(18)5/8×11 (F)2 1/16 – 3 11/162 1/4(1.0)
3203-
4596		3/4×10 (F)
3230-
4650		5/8×11 (F)
2.875 – 3.499(73.0 – 88.9)3230-
4596		62A(3)82(18)3/4×10 (F)2 1/2 – 4 1/43 3/16(1.4)
3230-
9308		7/8×9 (F)
3237-
4656		3/4×10 (F)
3.500 – 4.249(88.9 – 107.9)3237-
4644		51A(3)81(18)7/8×9 (F)2 3/4 – 4 1/23 1/4(1.5)
3237-
9966		1 1/8×12 (F)4 – 611 1/4(5.1)
4.250 – 5.249(108.0 – 133.2)3226-
6558		57(3)65(12)
5.250 – 6.500(133.4 – 165.1)2174-
7274
2174-53171 3/8×12 (F)5 1/8 – 6 15/1612 1/2(5.7)
